SGM7G-75AFA21

Cập nhật: 23/2/2021

SGM7G-75AFA21

Overview SGM7G-75AFA21

24-bit high-resolution encoder installed
High efficiency, low heat generation
Downsizing by up to 20%
Flange compatible with Sigma-5
Medium inertia, low speed, high torque

Technical Details SGM7G-75AFA21

INPUT POWER SUPPLY
200 V

RATED OUTPUT
7.5 kW

SHAFT END
Straight without key

ENCODER RESOLUTION
24 bit

ENCODER TYPE
Incremental

OPTIONS
Without options

HEIGHT
234 mm

WIDTH
180 mm

DEPTH
380 mm

WEIGHT
29.5 kg

ALLOWABLE LOAD MOMENT OF INERTIA
5 Times

FLANGE DIMENSION (LC)
180 mm

RATED TORQUE (NM)
48 Nm

INSTANTANEOUS MAXIMUM TORQUE

Cần tư vấn hoặc báo giá?

Liên hệ CÔNG TY TNHH HÀ PHONG – hotline 0904 918 479 / 0981 808 969 – hungpv@thegioibientan.vn

Bài viết liên quan

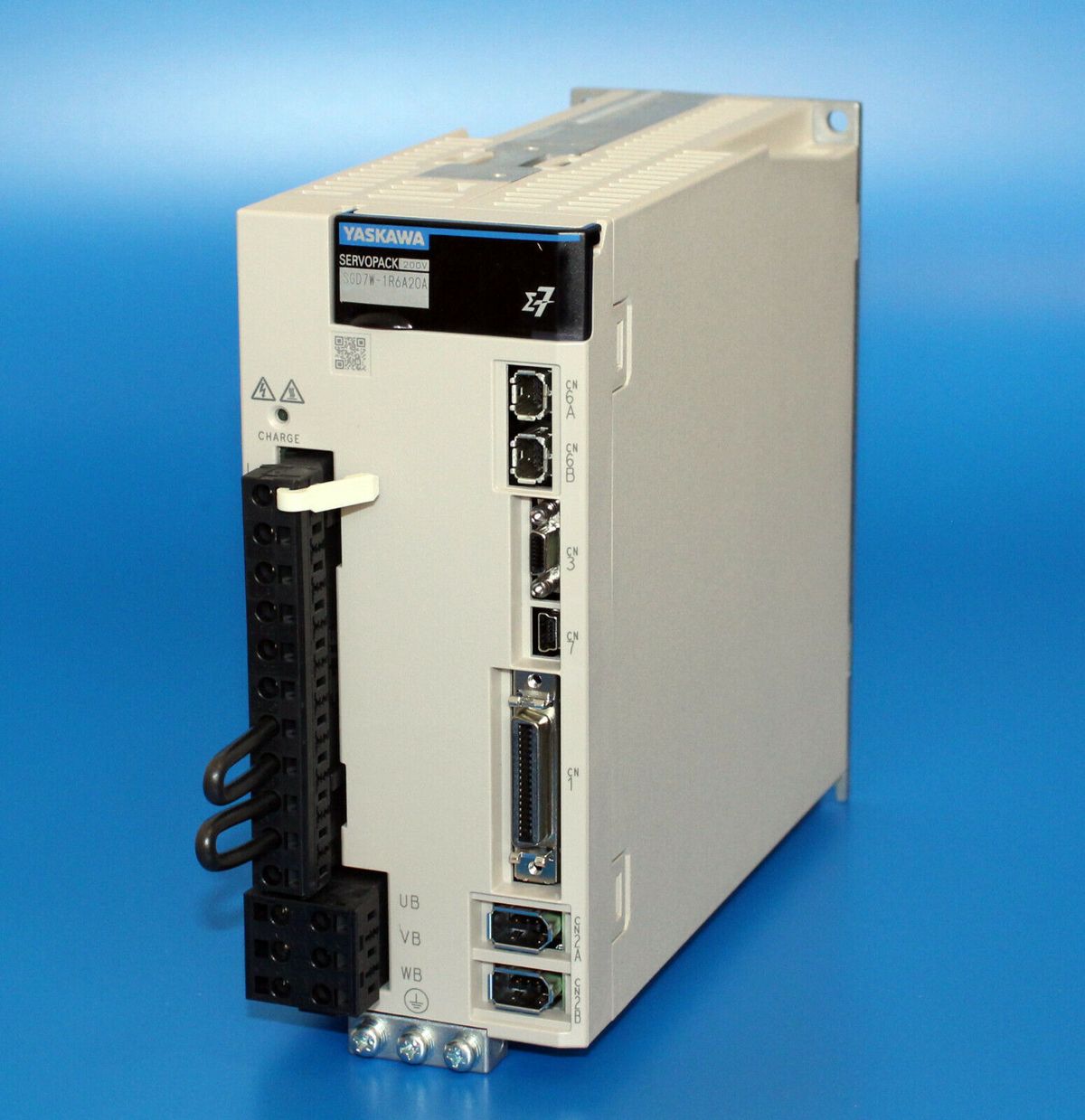

SGD7W MECHATROLINK-III

SGD7W MECHATROLINK-III Video Flyer Brochure Tech Supplement Core Manuals Configurator Instructions Dual Axis Capability with MECHATROLINK-III Networking Control two axes of servo motion within a single SERVOPACK amplifier that offers the advanced options of a MECHATROLINK-III motion network. Dual ax

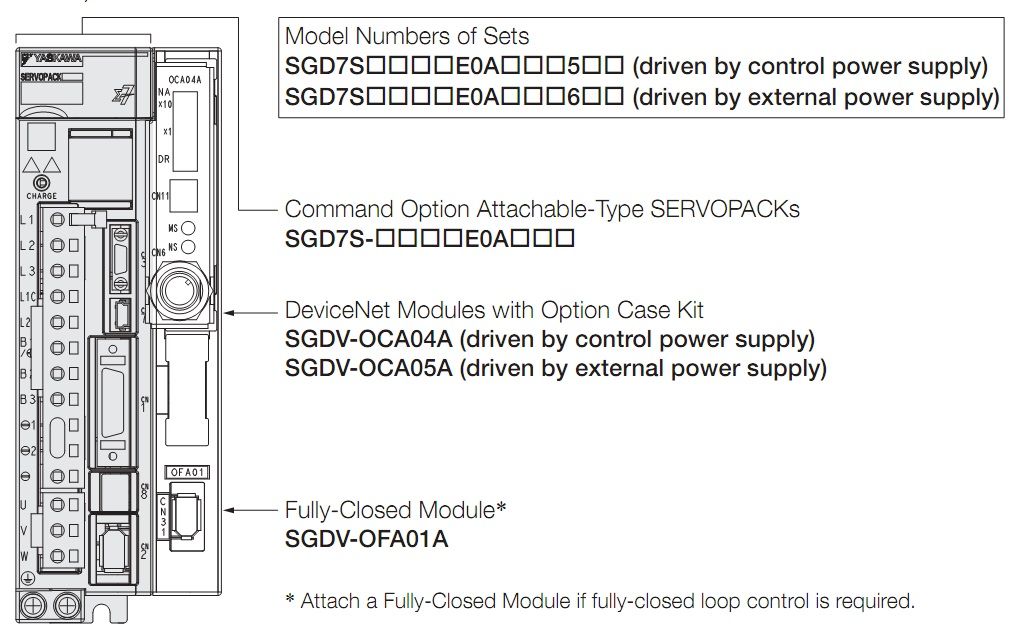

SGD7S Single-axis DeviceNet Module

SGD7S Single-axis DeviceNet Module Single-axis DeviceNet Module-Mounted SERVOPACK is a Command Option Attachable-Type SERVOPACK with a DeviceNet Module mounted on the side of the SERVOPACK. Positioning and origin returns can be performed by sending commands from the host controller (DeviceNet SGD7S

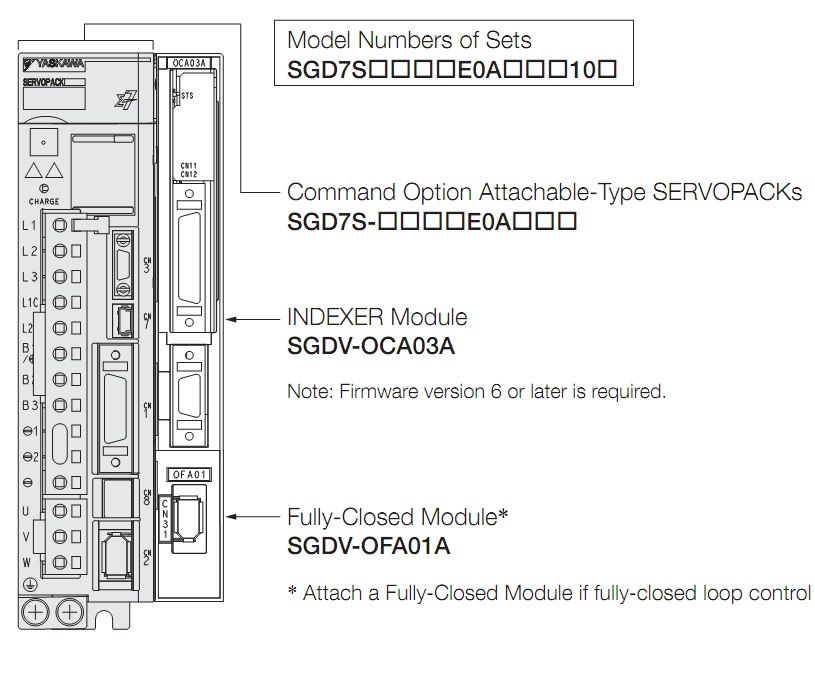

SGD7S INDEXER Module

SGD7S INDEXER Module A Σ-7S Single-axis INDEXER Module-Mounted SERVOPACK is a Command Option Attachable-Type SERVOPACK with an INDEXER Module mounted on the side of the SERVOPACK. Positioning with single-axis control can be performed by using program table operation and other functions. SGD7S INDEXE

SGD7S MECHATROLINK-III

SGD7S MECHATROLINK-III Video Flyer Brochure Tech Supplement Core Manuals Configurator Instructions SGD7S MECHATROLINK-III Model SGD7S MECHATROLINK-III 100V Input (24-bit encoder) Part Number Rated Output SGD7S-R70F30A 50W SGD7S-R90F30A 100W SGD7S-2R1F30A 200W SGD7S-2R8F30A 400W SGD7S MECHATROLINK-II

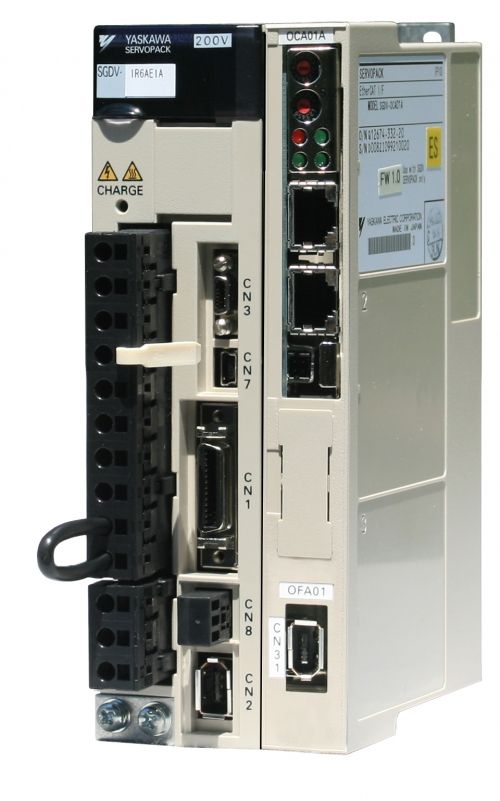

SGD7S MECHATROLINK-II

ServoPacks yaskawa SGD7S MECHATROLINK-II Video Flyer Brochure Tech Supplement Core Manuals Configurator Instructions SGD7S MECHATROLINK-II Models & Ratings SGD7S MECHATROLINK-II 100V Input (24-bit encoder) Part Number Rated Output SGD7S-R70F10A 50W SGD7S-R90F10A 100W SGD7S-2R1F10A 200W SGD7S-2R8F10A

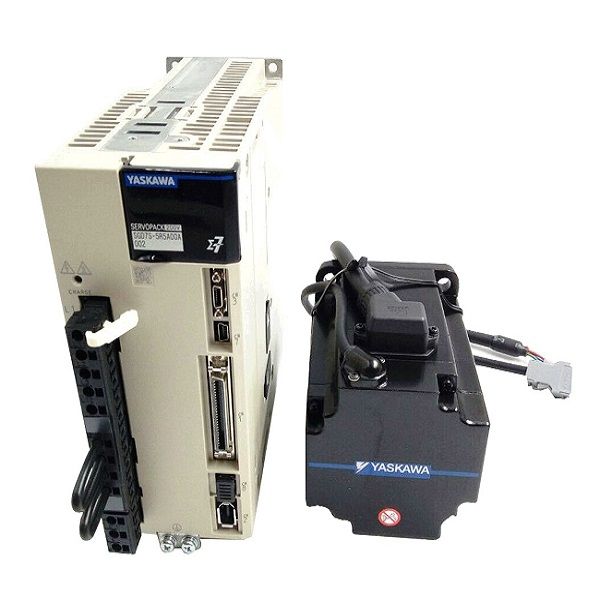

SGD7S Analog
