Lắp đặt Biến tần Yaskawa U1000 cho nhà máy nước

Application Overview

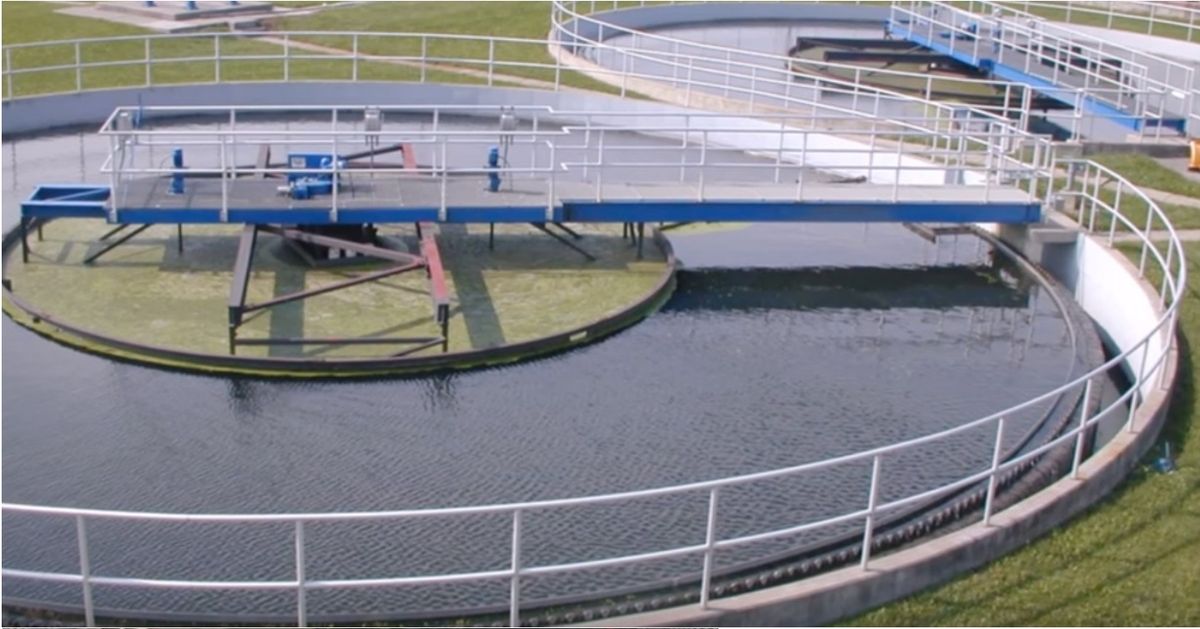

A Massachusetts-based municipal water treatment facility needed to upgrade their aging 350HP 18-pulse drives. They turned to a local Yaskawa drives distributor, who recommended a reliable, compact, and cost effective retrofit with Yaskawa’s U1000 Industrial Matrix Drive.

Challenge

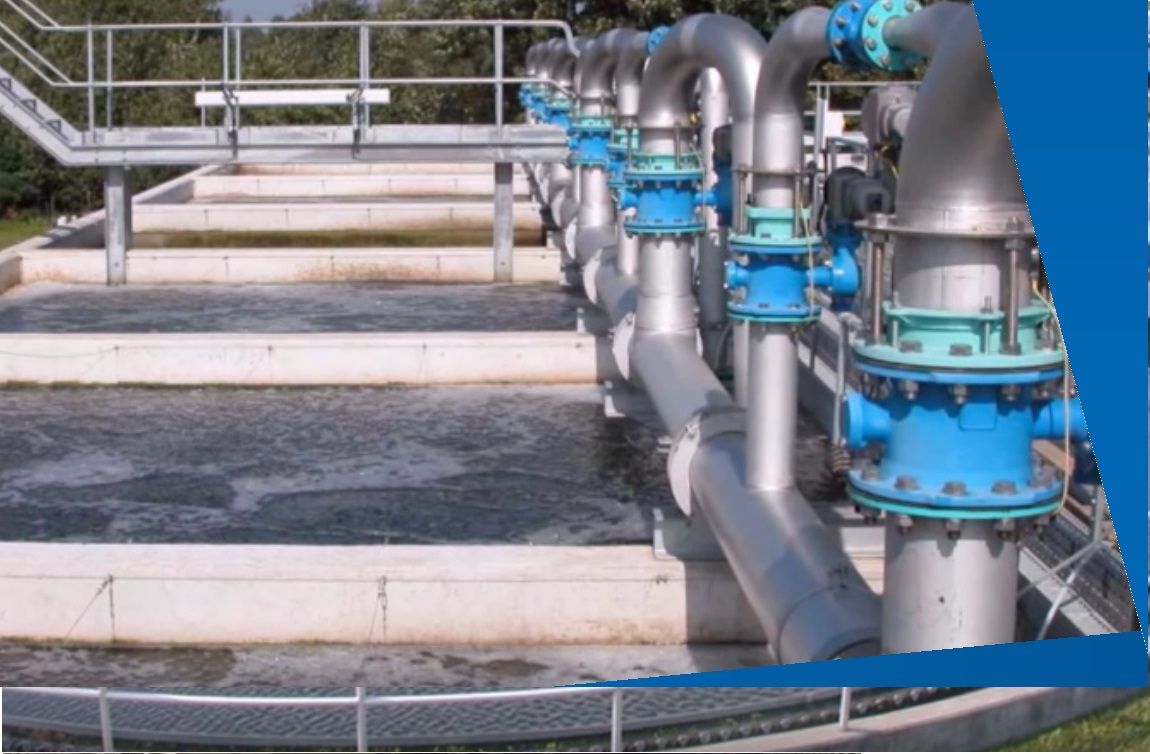

The water treatment facility has four 350 HP pumps. The pumps run 25 MGD on average, but can reach 75 MGD in less than an hour with heavy rain fall. Three of these pumps can satisfy this peak demand. The last pump is used as back-up in case one of the three were to fail. Failure of one pump during peak flow without a back-up could lead to a precarious situation. If the back-up pump and the designated lag pump were to fail, the back-up of the influent main could cause overflowing manholes and flooded streets. Based on the recommendations of the facility manager, the city made the decision to move forward with updating all of the influent drives. They began by upgrading their aging 350 HP Robicon 18-pulse pump drives, which had
become time-consuming and costly to keep in working order.

Giải pháp Lắp đặt Biến tần Yaskawa U1000 cho nhà máy nước

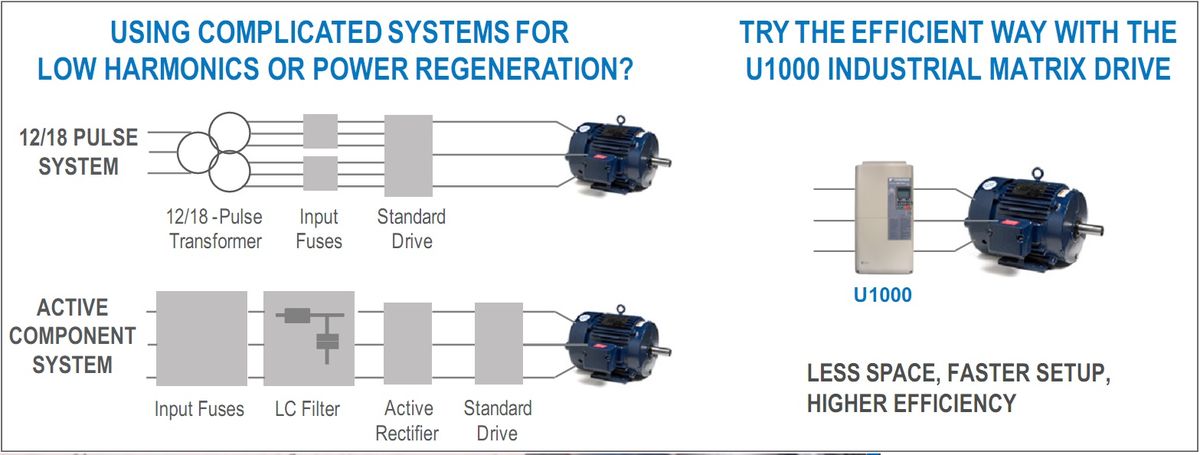

The Yaskawa distributor realized that a complete replacement would likely require a different size cabinet. The staff at the facility would also need time to become familiar with it. So they recommended a retrofit option using the Yaskawa U1000 Industrial Matrix drive. After the facility contacted a sister facility which was already using Yaskawa drives, they agreed with the retrofit option.Since the U1000 drive is a stand-alone, low harmonic drive with regenerative capability, a lot of unnecessary components inside the cabinet were able to be eliminated. The circuit breaker from the previous system was also able to be reused.

Kết quả Lắp đặt Biến tần Yaskawa U1000 cho nhà máy nước

The U1000 solution meets the input harmonic current capabilities of the previous 18-pulse package at rated power and also provides excellent harmonic current levels throughout the load range. The efficiency improvement was so dramatic that the water treatment facility was able to shut off the additional cabinet fans required to cool the previous system. They realized an immediate increase in efficiency due to reduction of the building’s cooling requirements. Reusing the existing cabinet saved space, but also meant that virtually nothing had changed for the staff. All the old controls on the door were easily integrated into the U1000. The Yaskawa solution provided all of these benefits at a cost of approximately half of a new 18-pulse configuration. As a result of this project, the water treatment facility has moved forward with updating several more of their outdated 18-pulse drives with the U1000.

Biến tần Yaskawa U1000

CIMR-UT2A0028	CIMR-UT2A0042	CIMR-UT2A0054	CIMR-UT2A0028	CIMR-UT2A0068	CIMR-UT2A0081
CIMR-UT2A0104	CIMR-UT2A0130	CIMR-UT2A0154	CIMR-UT2A0192	CIMR-UT2A0248
CIMR-UT4A0011	CIMR-UT4A0014	CIMR-UT4A0027	CIMR-UT4A0034	CIMR-UT4A0040	CIMR-UT4A0052
CIMR-UT4A0065	CIMR-UT4A0077	CIMR-UT4A0096	CIMR-UT4A0124	CIMR-UT4A0156	CIMR-UT4A0180
CIMR-UT4A0216	CIMR-UT4A0240	CIMR-UT4A0302	CIMR-UT4A0361	CIMR-UT4A0414	CIMR-UT4A0477
CIMR-UT4A0590
